CABLE RAMPS
AMS MODULAR

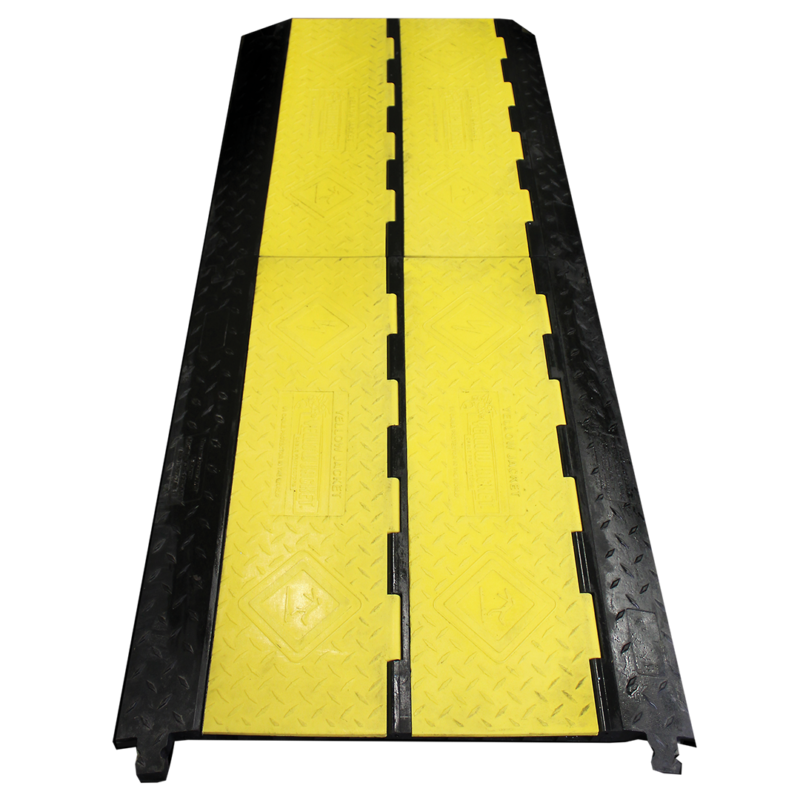

BASIC
![CableRamp_Basic Basic AMS Modular cable ramp between barricade.](https://guardianbarrierservices.com/wp-content/uploads/2023/12/CableRamp_Basic.png)
• Modular system that expands in sections of 5 channels
• Protects cables and hoses up to 1.325in outside diameter
• Dog Bone Connectors to extend to desired length
• Working length of 36in

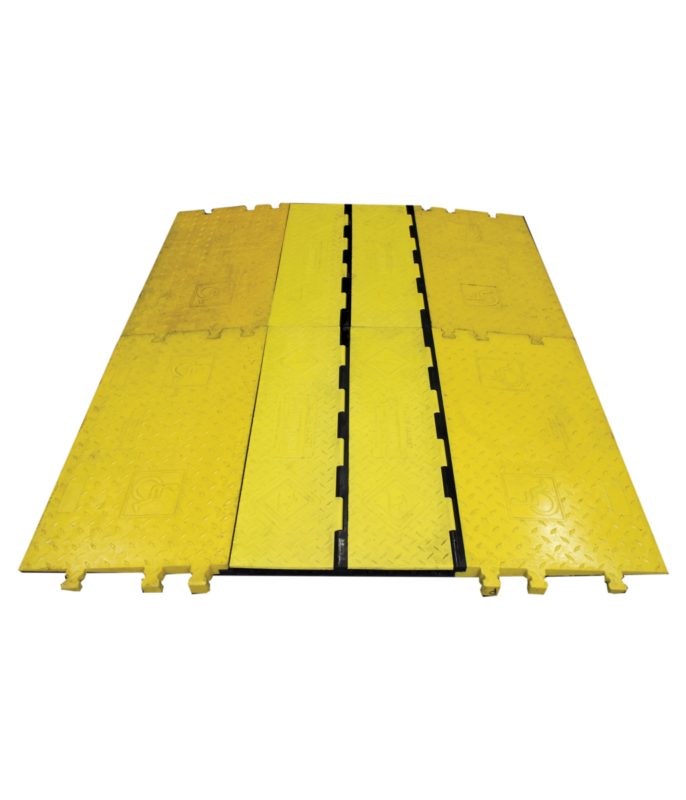

ADA
![CableRamp_ADAAMSRamp ADA AMS Modular cable ramp with cable lines coming out of it.](https://guardianbarrierservices.com/wp-content/uploads/2023/12/CableRamp_ADAAMSRamp.png)
• Modular system that expands in sections of 5 channels
• Protects cables and hoses up to 1.325in outside diameter
• Gradual slope and slip-resistant surface to ensure a safer crossing point
• Manufactured to meet ADA and DDA compliant specifications
• Working length of 36in

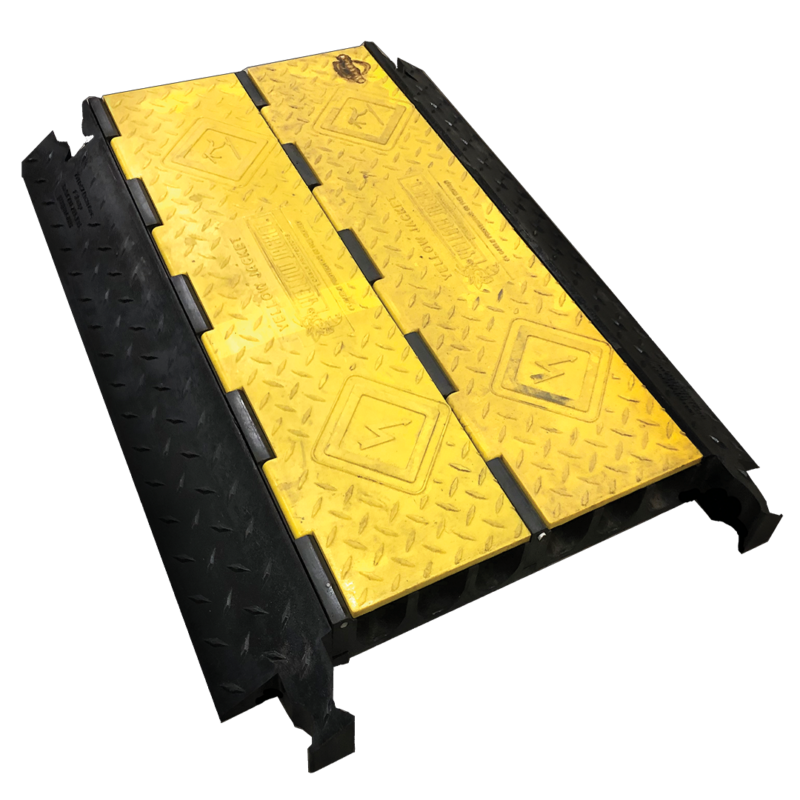

DEEP TROUGH
![AMSDeepTrough24 Deep Trough AMS Modular cable ramp in front of barricade.](https://guardianbarrierservices.com/wp-content/uploads/2023/12/AMSDeepTrough24-scaled.jpg)
• Modular system that expands in sections of 3 channels
• Protects cables and hoses up to 2.125in outside diameter
• Dog Bone Connectors to extend to desired length
• Ideal for looms and thick hoses
• Working length of 36in
GUARD DOG

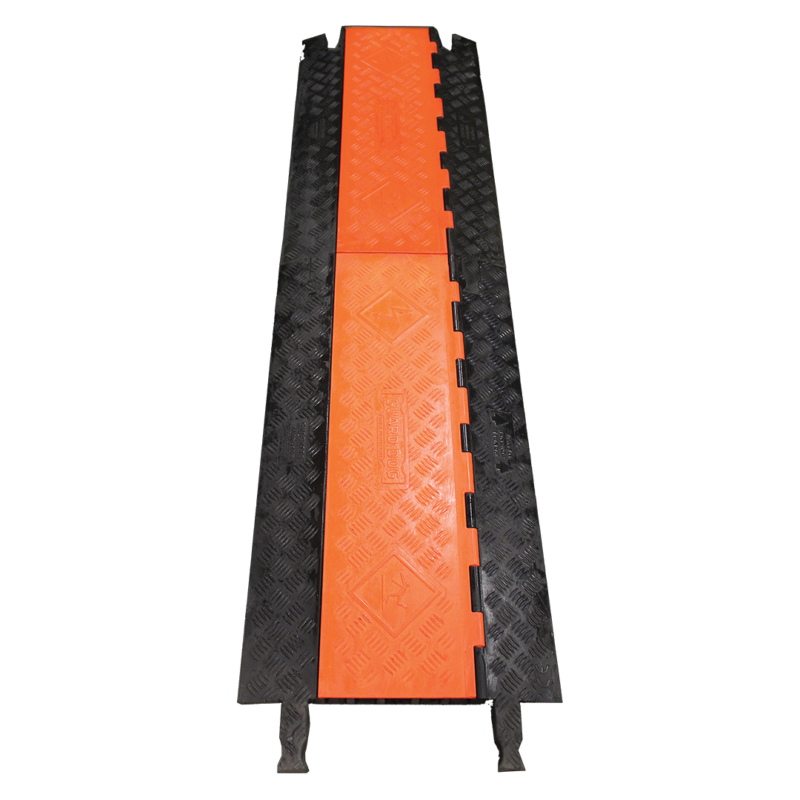

BASIC
![CableRamp_Barefoot110 Basic Guard Dog cable ramps on sand.](https://guardianbarrierservices.com/wp-content/uploads/2023/12/CableRamp_Barefoot110-scaled.jpg)
• 5 channel capacity
• Protects cables and hoses up to 1.325in outside diameter
• Dog Bone Connectors to extend to desired length
• Hinged lid provides a safer crossing for vehicle and pedestrian traffic

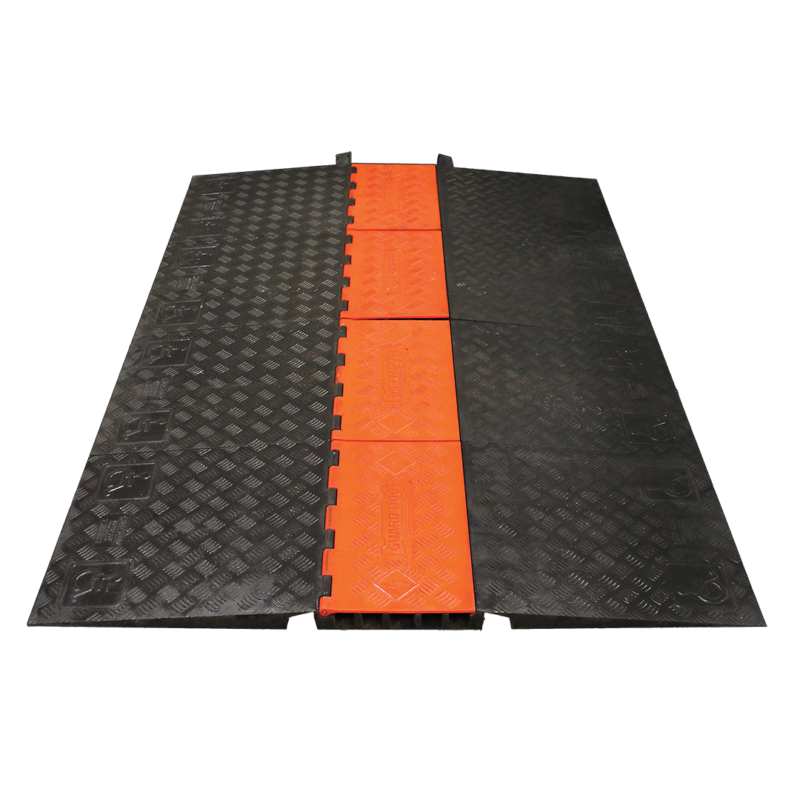

ADA
![GUARD DOG ADA CABLE RAMP ADA Guard Dog cable ramp in front of rolling riser with cables coming out of it.](https://guardianbarrierservices.com/wp-content/uploads/2023/12/CableRamp_Suenos-scaled.jpg)
• Interconnects directly to a 5-channel standard ramp Guard Dog cable protector
• Provides safer crossing for vehicle and pedestrian traffic while protecting valuable electrical cables and hoses
• ADA/DDA accessibility ramps built-in
DIAMOND PLATE

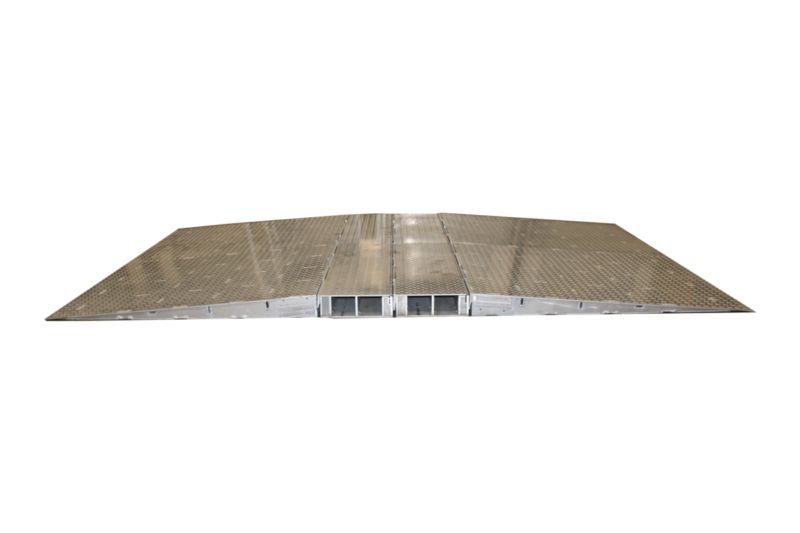

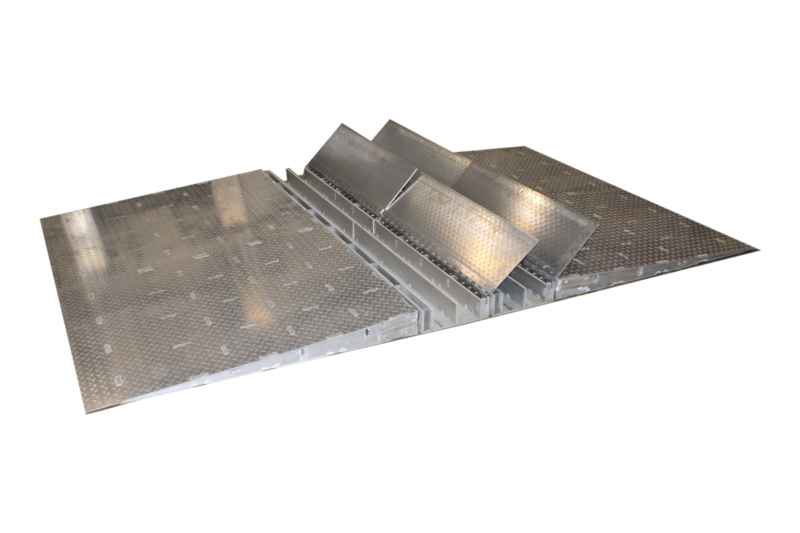

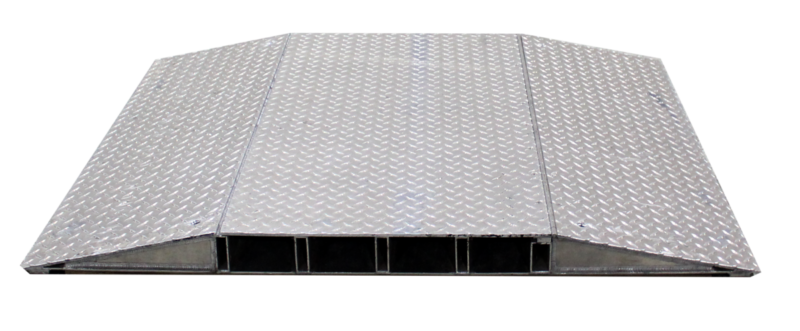

GUARDIAN HD MODULAR
![CableRamp_HDRamptowmotor Tow motor on top of Diamond Plate cable ramp.](https://guardianbarrierservices.com/wp-content/uploads/2023/12/CableRamp_HDRamptowmotor-scaled.jpg)
• Heavy duty construction
• Modular design that expands in sections of 2 or 5 channels
• Protects cables and hoses up to 3.375in outside diameter
• Ideal for loom and thick hoses
• Withstands heavy equipment traffic
• Packs nicely in standard barrier carts

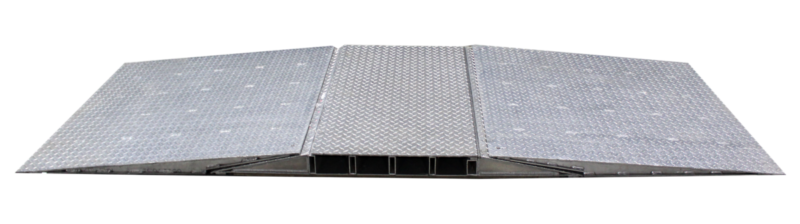

ADA
![CableRamp_Diamond Plate Extender Tow motor behind ADA Diamond Plate cable ramp.](https://guardianbarrierservices.com/wp-content/uploads/2024/01/CableRamp_Diamond-Plate-Extender.jpg)
• Heavy duty construction
• Protects cables and hoses up to 3in outside diameter
• Ideal for looms and thick hoses
• Available ramp extensions allow for smooth traffic crossing
